Information about cable, connector or adapter : IEEE 1394 Serial Bus

 IEEE 1394 Serial Bus
 Originally developed by :
 Copyright :
 Source :
 Category :   All cables and connectors > Connectors > Computer > Buses >
 Added to database : 2005-07-13 02:33:41
 Description : PINOUT: IEEE 1394 Serial Bus firewire

 IEEE 1394 Serial Bus

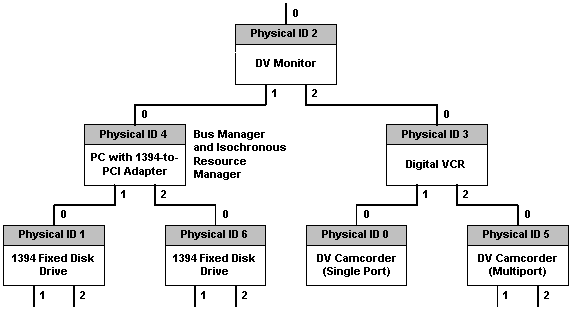

 Topology of a typical PC-based 1394 bus system for DV applications.

 IEEE 1394 Serial Bus

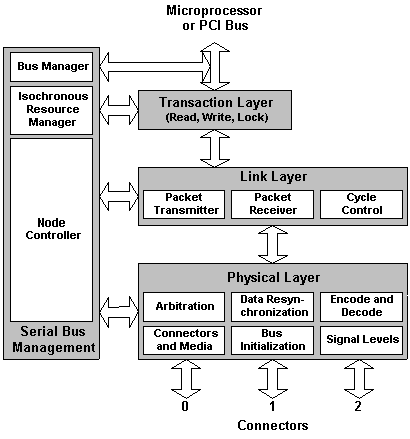

 The 1394 Protocol Stack and Serial Bus Management Controller.

 IEEE 1394 Serial Bus

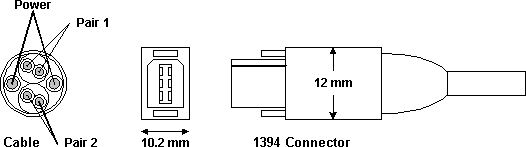

 1394 cables and connectors

 Pinout :
PinNameDirectionColorDescription
1pair1pair1
2powerpower
3pair2pair2

 Note : Cable PINOUT: IEEE 1394 Serial Bus firewire
