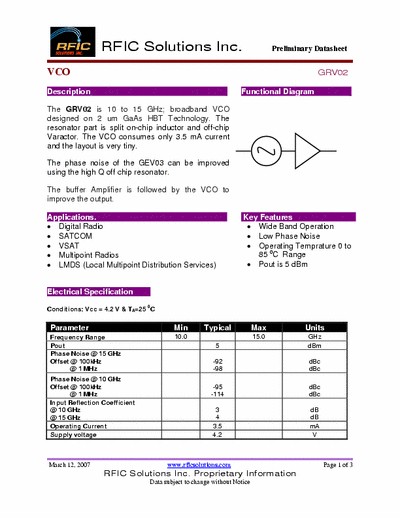

Rficsolutions Inc. GRV02 The GRV02 is 10 to 15 GHz; broadband VCO
designed on 2 um GaAs HBT Technology. The
resonator part is split on-chip inductor and off-chip
Varactor. The VCO consumes only 3.5 mA current
and the layout is very tiny.
The phase noise of the GEV03 can be improved
using the high Q off chip resonator.
Functional Diagram .
The buffer Amplifier is followed by the VCO to
improve the output.
