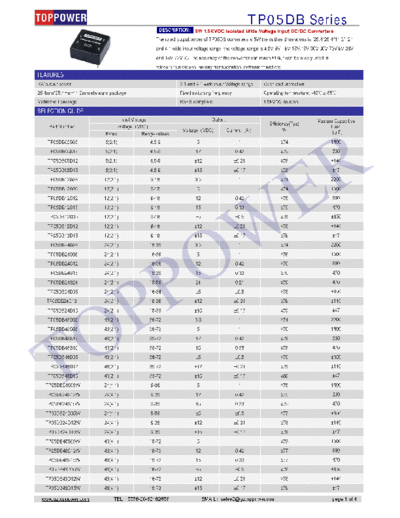

TOPPOWER tp05db encapsulated AC/DC converters 5W 1.5KVDC Isolated Wide Voltage Input DC/DC Converters The rated output power of TP05DB converters is 5W,the outline dimensions is "25.4*25.4*11.2", 2:1 and 4:1 wide input voltage range, the voltage range is 4.5V-9V，9V-18V,18V-36V,36V-72V,9V-36V and 18V-72VDC.The accuracy of the converter can reach ±1%,it can be widely used in telecommunications, railway transportation, instrument and etc. 5W output power 2:1 and 4:1 wide input Voltage range Over load protection 25.4mm*25.4mm*11.2mm standard package Fixed switching frequency Operating temperature: -40℃to 85℃ Metal shell package RoHS compliant 1.5KVDC isolation Part Number Input Vlotage Output voltage（VDC) Voltage（VDC) Rated Range values TP05DB05S05 5(2:1) 4.5-9 5 TP05DB05D12 5(2:1) 4.5-9 ±12 TP05DB12S03 12(2:1) 9-18 3.3 TP05DB12S05 12(2:1) 9-18 5 TP05DB12S12 12(2:1) 9-18 12 TP05DB12S15 12(2:1) 9-18 15 TP05DB12D05 12(2:1) 9-18 ±5 TP05DB12D12 12(2:1) 9-18 ±12 TP05DB12D15 12(2:1) 9-18 ±15 TP05DB24S03 24(2:1) 18-36 3.3 TP05DB24S05 24(2:1) 18-36 5 TP05DB24S12 24(2:1) 18-36 12 TP05DB24S15 24(2:1) 18-36 15 TP05DB24S24 24(2:1) 18-36 24 TP05DB24D05 24(2:1) 18-36 ±5 TP05DB24D12 24(2:1) 18-36 ±12 TP05DB24D15 24(2:1) 18-36 ±15 TP05DB48S03 48(2:1) 36-72 3.3 TP05DB48S05 48(2:1) 36-72 5 TP05DB48S12 48(2:1) 36-72 12 TP05DB48S15 48(2:1) 36-72 15 TP05DB48D05 48(2:1) 36-72 ±5 TP05DB48D12 48(2:1) 36-72 ±12 TP05DB48D15 48(2:1) 36-72 ±15 TP05DB24S05W 24(4:1) 9-36 5 TP05DB24S12W 24(4:1) 9-36 12 TP05DB24S15W 24(4:1) 9-36 15 TP05DB24D05W 24(4:1) 9-36 ±5 TP05DB24D12W 24(4:1) 9-36 ±12 TP05DB24D15W 24(4:1) 9-36 ±15 TP05DB48S05W 48(4:1) 18-72 5 TP05DB48S12W 48(4:1) 18-72 12 TP05DB48S15W 48(4:1) 18-72 15 TP05DB48D05W 48(4:1) 18-72 ±5 TP05DB48D12W 48(4:1) 18-72 ±12 TP05DB48D15W 48(4:1) 18-72 ±15
