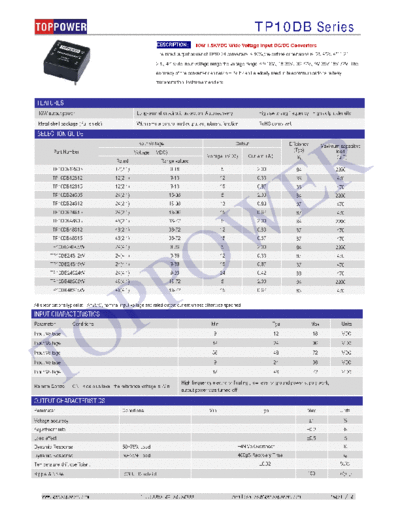

TOPPOWER TP10DB 10W 1.5KVDC Wide Voltage Input DC/DC Converters
10W output power	Long-term short-circuit protection, Auto recovery	High switching frequency , High output density
Metal shell package	With remote control and output adjustment function	RoHS compliant
SELECTION GUIDE
Part Number	Input Voltage	Output	Efficiency
(Typ)
%	Maximum capacitive load
(u F)
	Voltage (VDC)	Voltage(VDC)	Current(A)
	Rated	Range values
TP10DB12S05	12(2:1)	9-18	5	2.00	84	2200
TP10DB12S12	12(2:1)	9-18	12	0.83	86	470
TP10DB12S15	12(2:1)	9-18	15	0.67	86	470
TP10DB24S05	24(2:1)	18-36	5	2.00	84	2200
TP10DB24S12	24(2:1)	18-36	12	0.83	87	470
TP10DB24S15	24(2:1)	18-36	15	0.67	87	470
TP10DB48S05	48(2:1)	36-72	5	2.00	84	2200
TP10DB48S12	48(2:1)	36-72	12	0.83	87	470
TP10DB48S15	48(2:1)	36-72	15	0.67	87	470
TP10DB24S05W	24(4:1)	9-36	5	2.00	84	2200
TP10DB24S12W	24(4:1)	9-36	12	0.83	87	470
TP10DB24S15W	24(4:1)	9-36	15	0.67	87	470
TP10DB24S24W	24(4:1)	9-36	24	0.42	86	470
TP10DB48S05W	48(4:1)	18-72	5	2.00	84	2200
TP10DB48S15W	48(4:1)	18-72	15	0.67	83	470

All specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified
INPUT CHARACTERISTICS
Parameter	Conditions	Min	Typ	Max	Units
