Information about cable, connector or adapter : SO DIMM DRAM 72 Pin
SO DIMM DRAM 72 Pin Originally developed by : Copyright : Source : Category : All cables and connectors Connectors Computer Memories Added to database : 2006-02-16 08:11:53 Description : SO DIMM DRAM 72 Pin

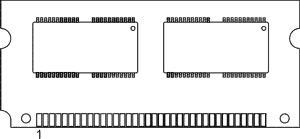

72 pin SO DIMM Pinout : Pin | Name | Direction | Color | Description |
1 | VSS | | | VSS |
2 | DQ0 | | | DQ0 |
3 | DQ1 | | | DQ1 |
4 | DQ2 | | | DQ2 |
5 | DQ3 | | | DQ3 |
6 | DQ4 | | | DQ4 |
7 | DQ5 | | | DQ5 |
8 | DQ6 | | | DQ6 |
9 | DQ7 | | | DQ7 |
10 | VDD | | | VDD |
11 | PRD1 | | | PRD1 |
12 | A0 | | | A0 |
13 | A1 | | | A1 |
14 | A2 | | | A2 |
15 | A3 | | | A3 |
16 | A4 | | | A4 |
17 | A5 | | | A5 |
18 | A6 | | | A6 |
19 | A10 | | | A10 |
20 | NC | | | NC |
21 | DQ8 | | | DQ8 |
22 | DQ9 | | | DQ9 |
23 | DQ10 | | | DQ10 |
24 | DQ11 | | | DQ11 |
25 | DQ12 | | | DQ12 |
26 | DQ13 | | | DQ13 |
27 | DQ14 | | | DQ14 |
28 | A7 | | | A7 |
29 | NC (A11) | | | NC (A11) |
30 | VDD | | | VDD |
31 | A8 | | | A8 |
32 | A9 | | | A9 |
33 | NC/RAS3#** | | | NC/RAS3#** |
34 | RAS2# | | | RAS2# |
35 | DQ15 | | | DQ15 |
36 | NC | | | NC |
37 | DQ16 | | | DQ16 |
38 | DQ17 | | | DQ17 |
39 | VSS | | | VSS |
40 | CAS0# | | | CAS0# |
41 | CAS2# | | | CAS2# |
42 | CAS3# | | | CAS3# |
43 | CAS1# | | | CAS1# |
44 | RAS0# | | | RAS0# |
45 | NC/RAS1#** | | | NC/RAS1#** |
46 | NC (A12) | | | NC (A12) |
47 | WE# | | | WE# |
48 | NC (A13) | | | NC (A13) |
49 | DQ18 | | | DQ18 |
50 | DQ19 | | | DQ19 |
51 | DQ20 | | | DQ20 |
52 | DQ21 | | | DQ21 |
53 | DQ22 | | | DQ22 |
54 | DQ23 | | | DQ23 |
55 | NC | | | NC |
56 | DQ24 | | | DQ24 |
57 | DQ25 | | | DQ25 |
58 | DQ26 | | | DQ26 |
59 | DQ28 | | | DQ28 |
60 | DQ27 | | | DQ27 |
61 | VDD | | | VDD |
62 | DQ29 | | | DQ29 |
63 | DQ30 | | | DQ30 |
64 | DQ31 | | | DQ31 |
65 | NC | | | NC |
66 | PRD2 | | | PRD2 |
67 | PRD3 | | | PRD3 |
68 | PRD4 | | | PRD4 |
69 | PRD5 | | | PRD5 |
70 | PRD6 | | | PRD6 |
71 | PRD7 | | | PRD7 |
72 | VSS | | | VSS |
Note : SO: Small Outline
DIMM: Dual Inline Memory Module
DRAM: Dynamic Random Access Memory
-
-
-
-
