Information about cable, connector or adapter : 1995 BMW 325i radio and amplifier connector

 1995 BMW 325i radio and amplifier connector
 Originally developed by :
 Copyright :
 Source :
 Category :   All cables and connectors > Connectors > Home audio/video >
 Added to database : 2007-06-06 12:32:50

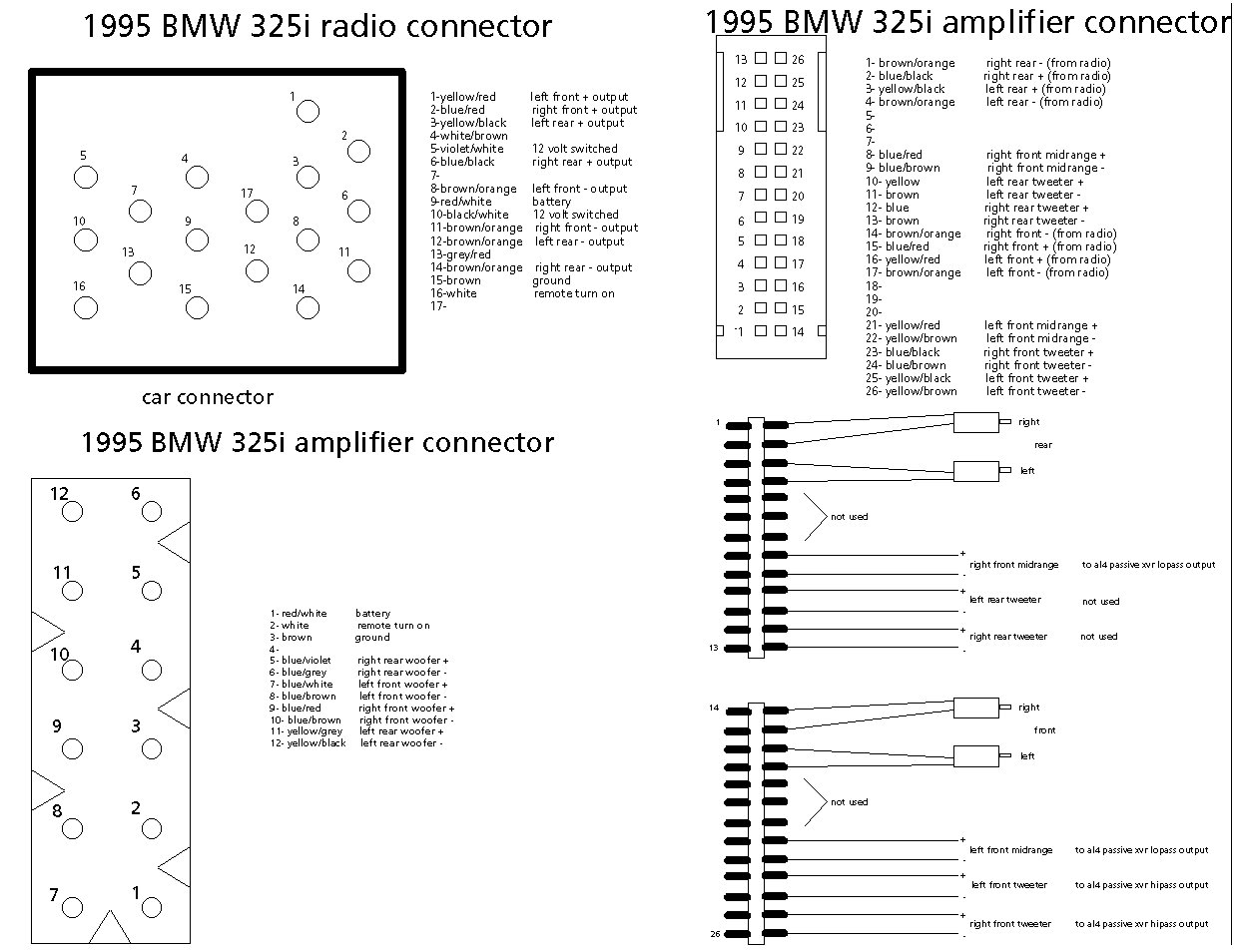

 Description : 1995 BMW 325i radio connector 1995 BMW 325i radio connector e36 200w stereo pinouts

 1995 BMW 325i radio and amplifier connector


 Pinout :
PinNameDirectionColorDescription
1see picturesee picture

 Note : e36_200w_stereo_pinouts.gif
