Information about cable, connector or adapter : Jeep Grand Cherokie 8-to 10 pin song/artist display cable

 Jeep Grand Cherokie 8-to 10 pin song/artist display cable
 Originally developed by :
 Copyright :
 Source :
 Category :   All cables and connectors > Cables >
 Added to database : 2007-06-07 10:25:24
 Description : Jeep Grand Cherokie 1999 - 2004 8-to 10 pin song/artist display cable

 Jeep Grand Cherokie 8-to 10 pin song/artist display cable


 Pinout :
PinNameDirectionColorDescription

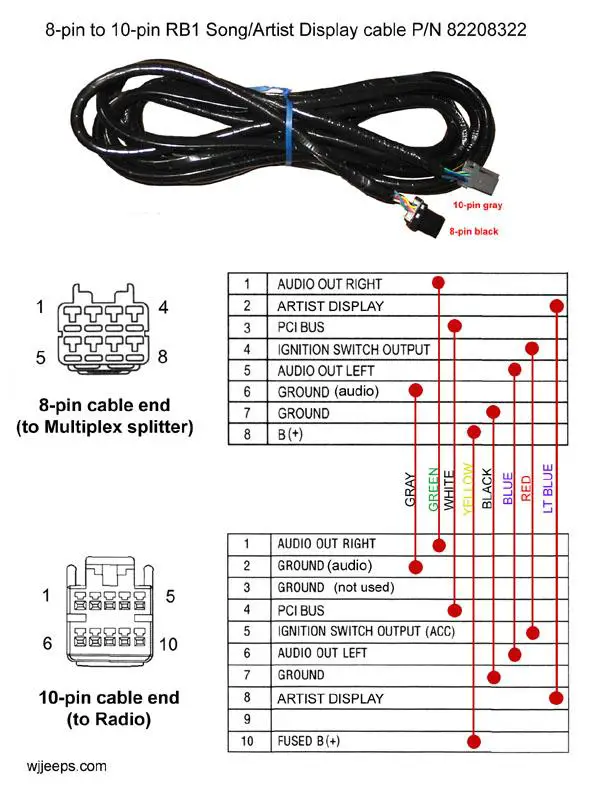

1see picturesee picture

 Note : Jeep Grand Cherokie 1999 - 2004 8-to 10 pin song/artist display cable
