 AGP Bus Connector
 Originally developed by : Intel
 Copyright : Intel
 Source : http://www.intel.com/
 Category :   All cables and connectors > Connectors > Computer > Buses >
 Added to database : 2005-02-20 16:03:38
 Description : AGP = Accelerated Graphic Port

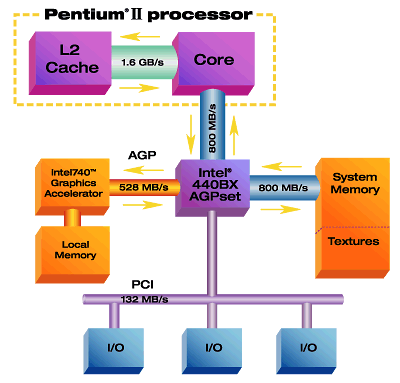

Accelerated Graphics Port technology improves system performance by providing a high-speed pathway between the PC's graphics controller and system memory. This pathway enables the graphics controller to execute texture maps directly from system memory rather that caching them in its limited local video memory. It also helps speed the flow of decoded video from the CPU to the graphics controller.

AGP advantages:

Texture maps of unlimited size, detail, and realism can be employed. 3D applications will also run faster when the need to pre-fetch and cache textures in local video memory is eliminated. How much faster? Up to 12.6 times more frames per second. By minimizing the need for video memory, AGP helps OEMs control the costs of new PC designs. Video traffic will fly seamlessly across the AGP bus to the user's screen. Systems will have more stability when bandwidth-intensive graphics and video traffic is removed from the PCI bus.

 AGP Bus Connector
 AGP Bus Connector

 AGP Bus Connector


 Pinout :
PinNameDirectionColorDescription
A01+12 V dc
A02spare
A03Reserved *
A04USB-
A05Ground
A06INTA#
A07RST#
A08GNT#
A09VCC 3.3
A10ST1
A11Reserved
A12PIPE#
A13Ground
A14Spare
A15SBA1
A16VCC 3.3
A17SBA3
A18Reserved
A19Ground
A20SBA5
A21SBA7
A22Key
A23Key
A24Key
A25Key
A26AD30
A27AD28
A28VCC 3.3
A29AD26
A30AD24
A31Ground
A32Reserved
A33C/BE3#
A34Vddq 3.3
A35AD22
A36AD20
A37Ground
A38AD18
A39AD16
A40Vddq 3.3
A41FRAME#
A42Spare
A43Ground
A44Spare
A45VCC 3.3
A46TRDY#
A47STOP#
A48Spare
A49Ground
A50PAR
A51AD15
A52Vddq 3.3
A53AD13
A54AD11
A55Ground
A56AD9
A57C/BE0#
A58Vddq 3.3
A59Reserved
A60AD6
A61Ground
A62AD4
A63AD2
A64Vddq 3.3
A65AD0
A66SMB1
B01spare
B02+5 V dc
B03+5 V dc
B04USB+
B05Ground
B06INTB#
B07CLK
B08REQ#
B09VCC 3.3
B10ST0
B11ST2
B12RBF#
B13Ground
B14Spare
B15SBA0
B16VCC 3.3
B17SBA2
B18SB_STB
B19Ground
B20SBA4
B21SBA6
B22Key
B23Key
B24Key
B25Key
B26AD31
B27AD29
B28VCC 3.3
B29AD27
B30AD25
B31Ground
B32AD STB1
B33AD23
B34Vddq 3.3
B35AD21
B36AD19
B37Ground
B38AD17
B39C/BE2#
B40Vddq 3.3
B41IRDY#
B42Spare
B43Ground
B44Spare
B45VCC 3.3
B46DEVSEL#
B47Vddq 3.3
B48PERR#
B49Ground
B50SERR#
B51C/BE1#
B52Vddq 3.3
B53AD14
B54AD12
B55Ground
B56AD10
B57AD8
B58Vddq 3.3
B59AD STB0
B60AD7
B61Ground
B62AD5
B63AD3
B64Vddq 3.3
B65AD1
B66SMB0

 Note : * This reserved pin should be connected to Ground
