Information about cable, connector or adapter : Mouse/Keyboard (PS/2)

 Mouse/Keyboard (PS/2)
 Originally developed by :
 Copyright :
 Source :
 Category :   All cables and connectors > Connectors > Computer > Serial I/O >
 Added to database : 2005-10-05 04:16:20
 Description : PS/2

 Mouse/Keyboard (PS/2)
 SEND DATA PACKET

 Mouse/Keyboard (PS/2)
 At the computer

 Pinout :
PinNameDirectionColorDescription
1DataIn/OutKey Data
2----
3GndGround
4VccOutPower , +5 VDC
5CLKOutClock
6----

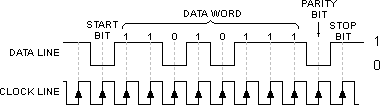

 Note : PS2 ports use synchronous serial signals to communicate between the keyboard or mouse to the computer
