Information about cable, connector or adapter : Ultra-slim fast 1.8 inch Winchester disk drives

 Ultra-slim fast 1.8 inch Winchester disk drives
 Originally developed by :
 Copyright :
 Source :
 Category :   All cables and connectors > Connectors > Computer > Harddrives >
 Added to database : 2007-12-07 11:39:10
 Description : Like Toshiba’s MK4004GAH (HDD1524) and MK2004GAH (HDD1422) hard disk drives are ultra-slim fast 1.8 inch Winchester disk drives. The drives are ATA compliant.

 Ultra-slim fast 1.8 inch Winchester disk drives


 Ultra-slim fast 1.8 inch Winchester disk drives


 Pinout :
PinNameDirectionColorDescription
1RESETRESET
2GROUNDGROUND
3DD7DD7
4DD8DD8
5DD6DD6
6DD9DD9
7DD5DD5
8DD10DD10
9DD4DD4
10DD11DD11
11DD3DD3
12DD12DD12
13DD2DD2
14DD13DD13
15DD1DD1
16DD14DD14
17DD0DD0
18DD15DD15
19GROUNDGROUND
20OPENOPEN
21DMARQ, -DIOWDMARQ, -DIOW
22GROUNDGROUND
23STOPSTOP
24GROUNDGROUND
25DIORDIOR
26GROUNDGROUND
27IORDYIORDY
28CSELCSEL
29DMACKDMACK
30GROUNDGROUND
31INTRQINTRQ
32IOCS16IOCS16
33DA1DA1
34PDIAG/-CBLIDPDIAG/-CBLID
35DA0DA0
36DA2DA2
37CS0CS0
38CS1CS1
39DASPDASP
40GROUNDGROUND
41+ 3.3V (LOGIC)+ 3.3V (LOGIC)
42+ 3.3V (MOTOR)+ 3.3V (MOTOR)
43GROUNDGROUND
44RESERVEDRESERVED

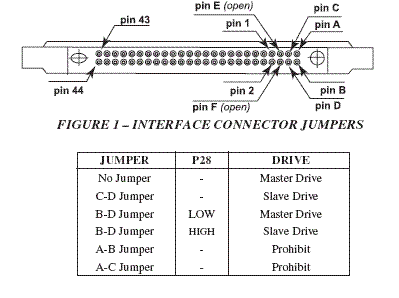

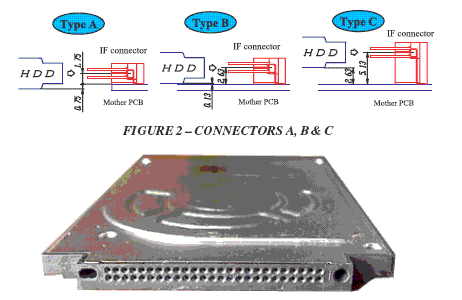

 Note : Three (Type A, B and C) Interface Connectors are available from Fujikura America Inc./DDK Connector Division
