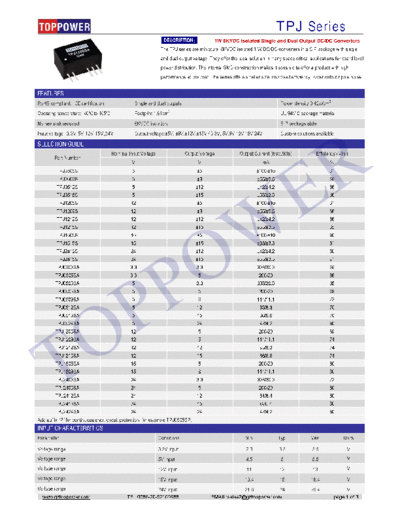

Preview for : TOPPOWER TPJ 1W 6KVDC Isolated Single and Dual Output DC/DC Converters The TPJ series are miniature, 6KVDC isolated 1 W DC/DC-converters in a SIP package with single and dual output voltage. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to offer a product with high performance at low cost. The series offers smaller size, improved efficiency, lower output ripple noise. Part Number Nominal Input Voltage Output Voltage V V TPJ0505S 5 ±5 TPJ0509S 5 ±9 TPJ0512S 5 ±12 TPJ0515S 5 ±15 TPJ1205S 12 ±5 TPJ1209S 12 ±9 TPJ1212S 12 ±12 TPJ1215S 12 ±15 TPJ1505S 15 ±5 TPJ1515S 15 ±15 TPJ2412S 24 ±12 TPJ2415S 24 ±15 TPJ0303SA 3.3 3.3 TPJ0305SA 3.3 5 TPJ0503SA 5 3.3 TPJ0505SA 5 5 TPJ0509SA 5 9 TPJ0512SA 5 12 TPJ0515SA 5 15 TPJ0524SA 5 24 TPJ1205SA 12 5 TPJ1209SA 12 9 TPJ1212SA 12 12 TPJ1215SA 12 15 TPJ1505SA 15 5 TPJ1509SA 15 9 TPJ2403SA 24 3.3 TPJ2405SA 24 5 TPJ2412SA 24 12 TPJ2415SA 24 15 TPJ2424SA 24 24


Back to : TPJ.pdf | Download TPJ.pdf | Home

TOPPOWER TPJ 1W 6KVDC Isolated Single and Dual Output DC/DC Converters The TPJ series are miniature, 6KVDC isolated 1 W DC/DC-converters in a SIP package with single and dual output voltage. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to offer a product with high performance at low cost. The series offers smaller size, improved efficiency, lower output ripple noise. Part Number Nominal Input Voltage Output Voltage V V TPJ0505S 5 ±5 TPJ0509S 5 ±9 TPJ0512S 5 ±12 TPJ0515S 5 ±15 TPJ1205S 12 ±5 TPJ1209S 12 ±9 TPJ1212S 12 ±12 TPJ1215S 12 ±15 TPJ1505S 15 ±5 TPJ1515S 15 ±15 TPJ2412S 24 ±12 TPJ2415S 24 ±15 TPJ0303SA 3.3 3.3 TPJ0305SA 3.3 5 TPJ0503SA 5 3.3 TPJ0505SA 5 5 TPJ0509SA 5 9 TPJ0512SA 5 12 TPJ0515SA 5 15 TPJ0524SA 5 24 TPJ1205SA 12 5 TPJ1209SA 12 9 TPJ1212SA 12 12 TPJ1215SA 12 15 TPJ1505SA 15 5 TPJ1509SA 15 9 TPJ2403SA 24 3.3 TPJ2405SA 24 5 TPJ2412SA 24 12 TPJ2415SA 24 15 TPJ2424SA 24 24
